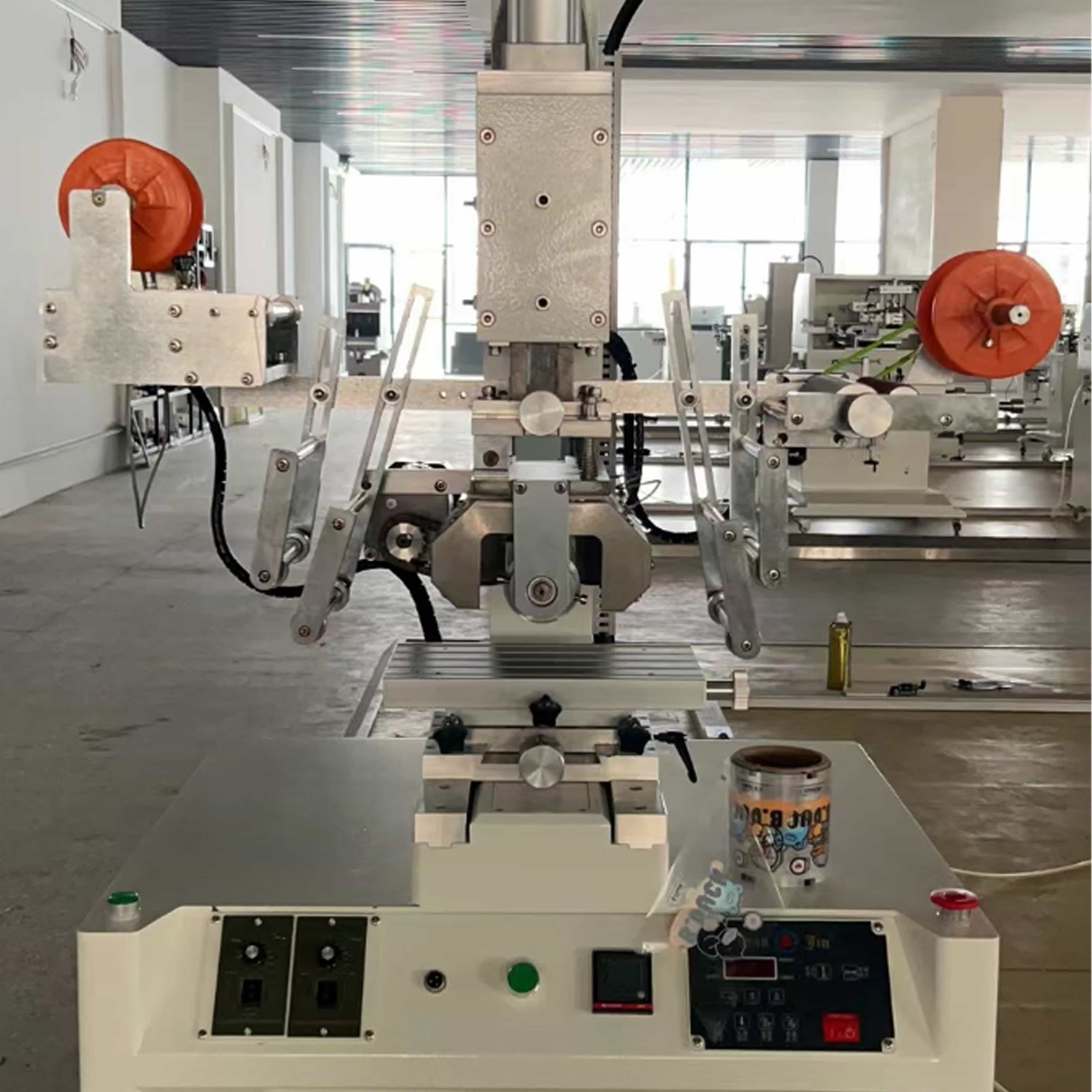

Pneumatic circular surface cautery heat transfer machine

Product parameters are introduced

1. Features:

2. Roller size: Ø100*L100MM

3. Maximum printing diameter: 200MM

4. Maximum height of pattern: 100MM

5. Printing accuracy: ≤0.3-0.5MM

6. Hot stamping temperature selection range: 0-280 °C

7. Stamping film width: 130MM

8. Maximum speed: 1000PCS/hr

9. Air consumption: 78L/min

10. Air pressure: 6-8ber

11. Perm up and down stroke: 100MM

12. Power supply: 220V/110V 50/60HZ

13. Heating power: 1200W

14. Net size: 600*750*1900MM
