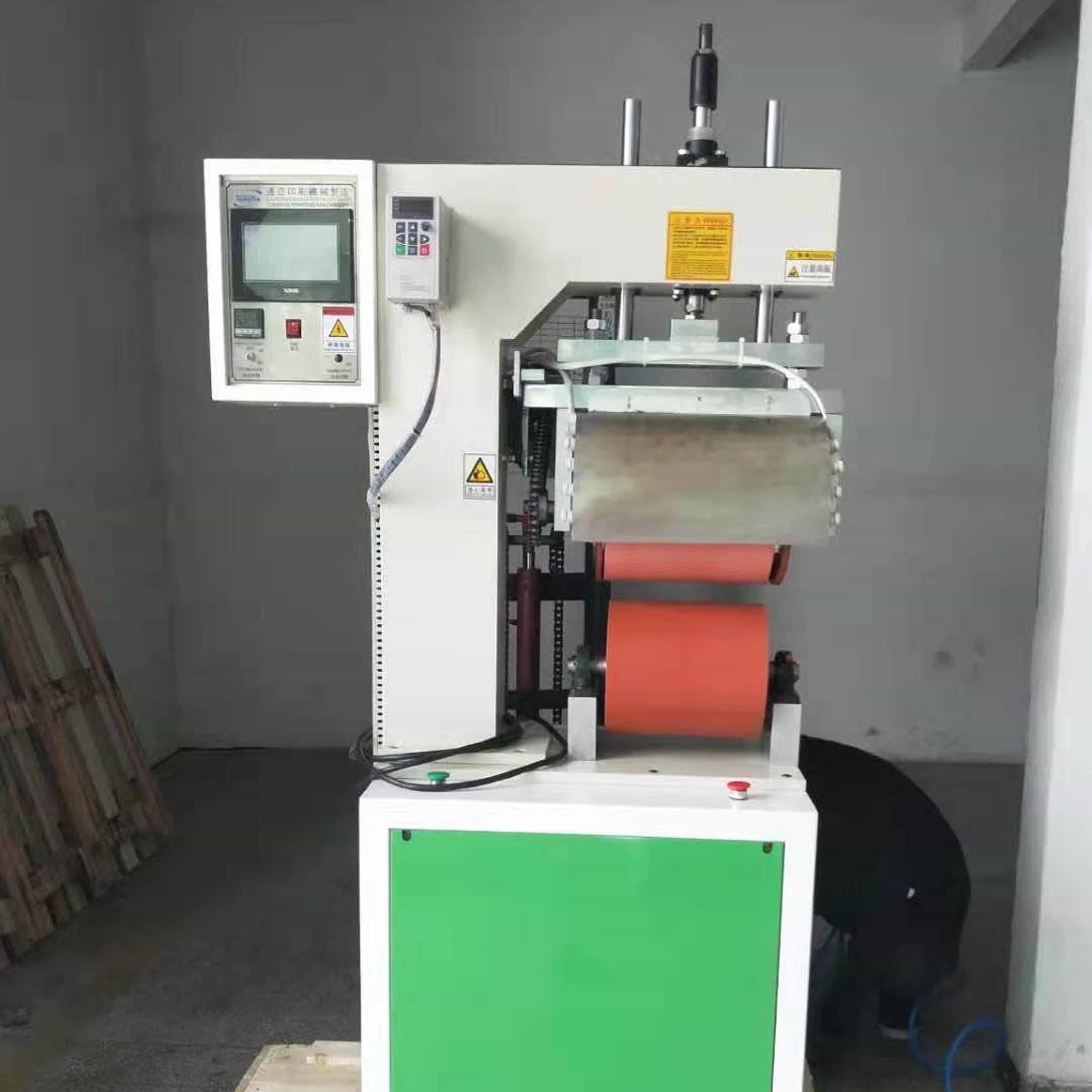

Skateboard special single-head heat transfer machine 11 inches

Product parameters are introduced

1, printing monochrome/multi-color

2, single cycle can

3. Continuous exercise is OK

4. Item count is OK

5, speed adjustment can be

6, each part of the delay can be

7, printing speed 200-300 times/hour

8, drive hydraulic, variable frequency motor

9, control system PLC control

10, the size of the rubber roller :￠250×280mm (can install 12 inches wide rubber wheels)

11, hydraulic cylinder up and down stroke: 75 mm

12, the maximum workpiece height :30mm

13, stamping temperature selection range: room temperature ~ 300℃

14, hot stamping pressure selection range :≤2000kgf

15, heating power: 4KW

16, total power: 6.5KW

17. Net weight/total packaging weight: 470KG/530KG

18. Net size/wooden box size: 1150*750*2050mm/1250*850*2150mm
