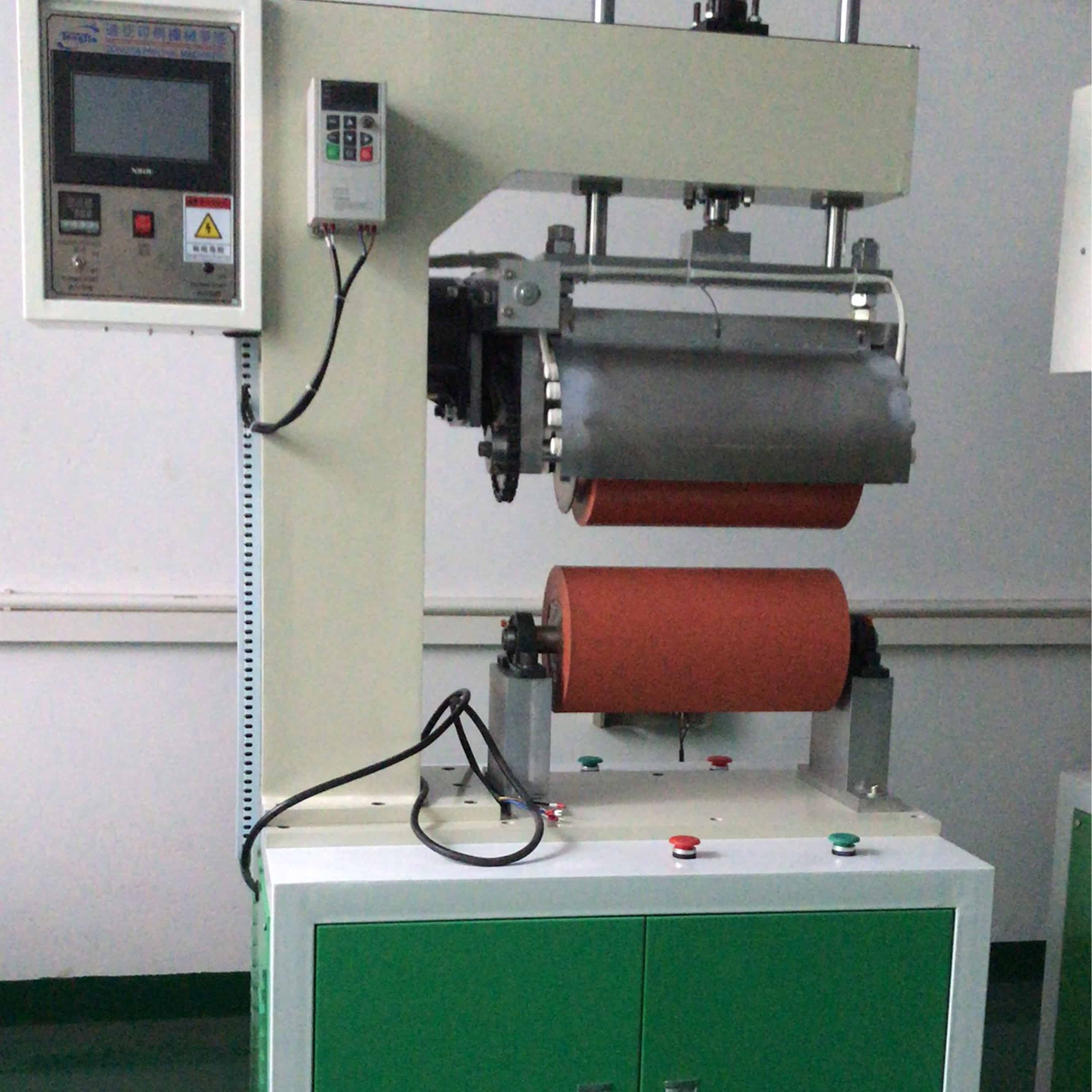

Skateboard special single head heat transfer printer 14 inches

Product parameters are introduced

1, printing monochrome/multi-color

2, single cycle 3, continuous movement can

4. Item count is OK

5, speed adjustment can be

6, each part of the delay can be

7, printing speed 200-300 times/hour

8, drive hydraulic, variable frequency motor

9, control system PLC control

10, roller size: ￠200×360mm (can expand 15 inch rubber wheel)

11, hydraulic cylinder up and down stroke: 75 mm

12, the maximum workpiece height: 50mm

13, stamping temperature selection range: room temperature ~ 300℃

14, hot stamping pressure selection range: ≤2500kgf

15, heating power :5KW

16, total power: 6.8KW

17. Net weight/total packaging weight: 500KG/570KG

18. Net size/wooden box size: 1200*750*2100mm/1300*850*2250mm
