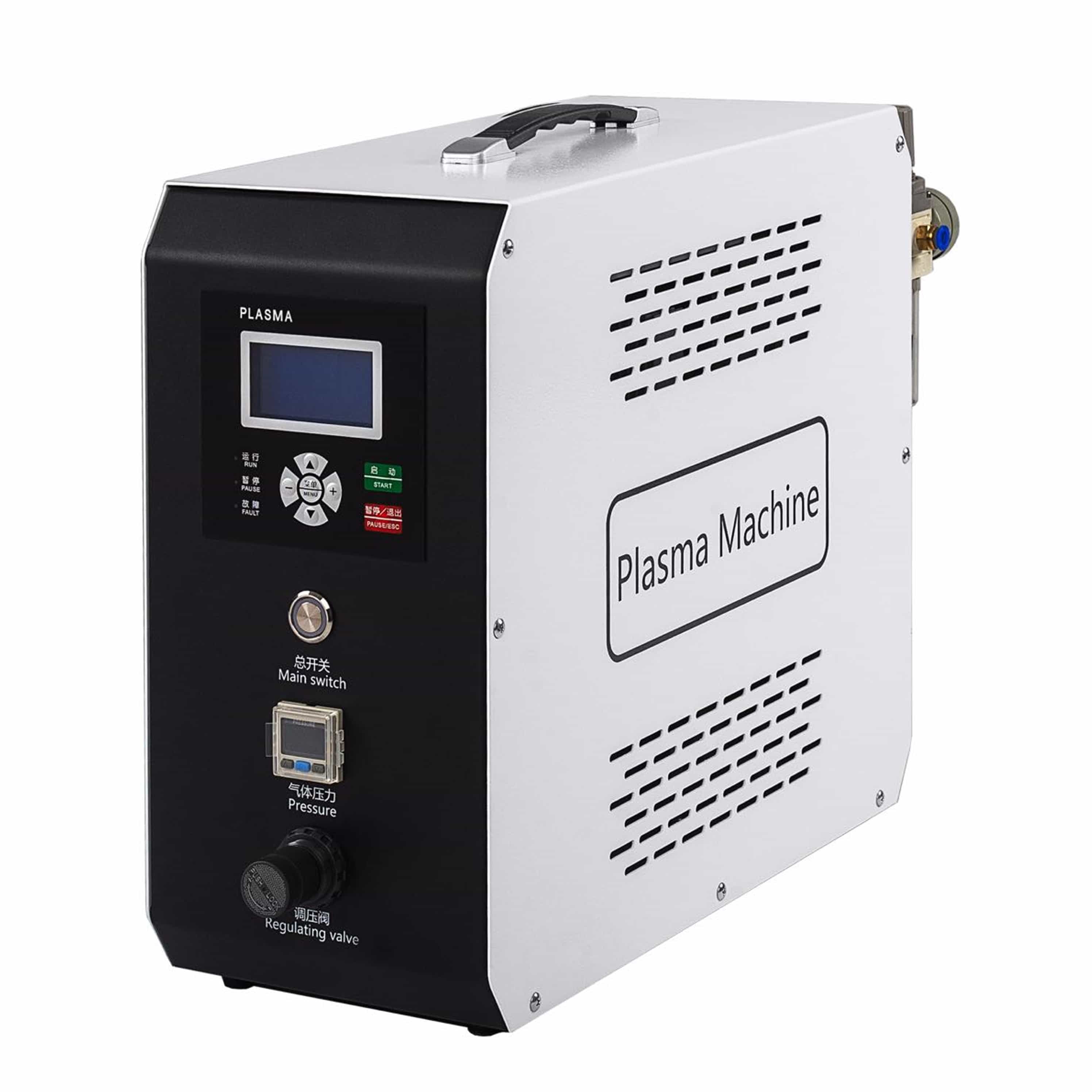

1600W plasma surface processor

Product parameters are introduced

1. Machine size: 195 * 463.2 * 422.38mm

2. Outer carton size: 645 * 415 * 470mm

3. Weight of the main box: 13.5KG

4. Rotating head weight: 3.6KG

5. Straight gun head weight: 1.65KG

6. Total weight (carton including equipment) : about 18.5KG

7. Barrel length: 2.6 m

8. Power supply voltage: 220(+10%)Vac 50/60Hz,

9. power input fuse specification:

10. 18KHz ~ 40KHz

11. Operating HF frequency: 18KHz ~ 40KHz

12. Operating high voltage: 2KV~ 7KV

13. Maximum practical output power:1600W

14. Maximum power consumption: <1000W

15. Operating air pressure range: 0.2MPa~0.4MPa
