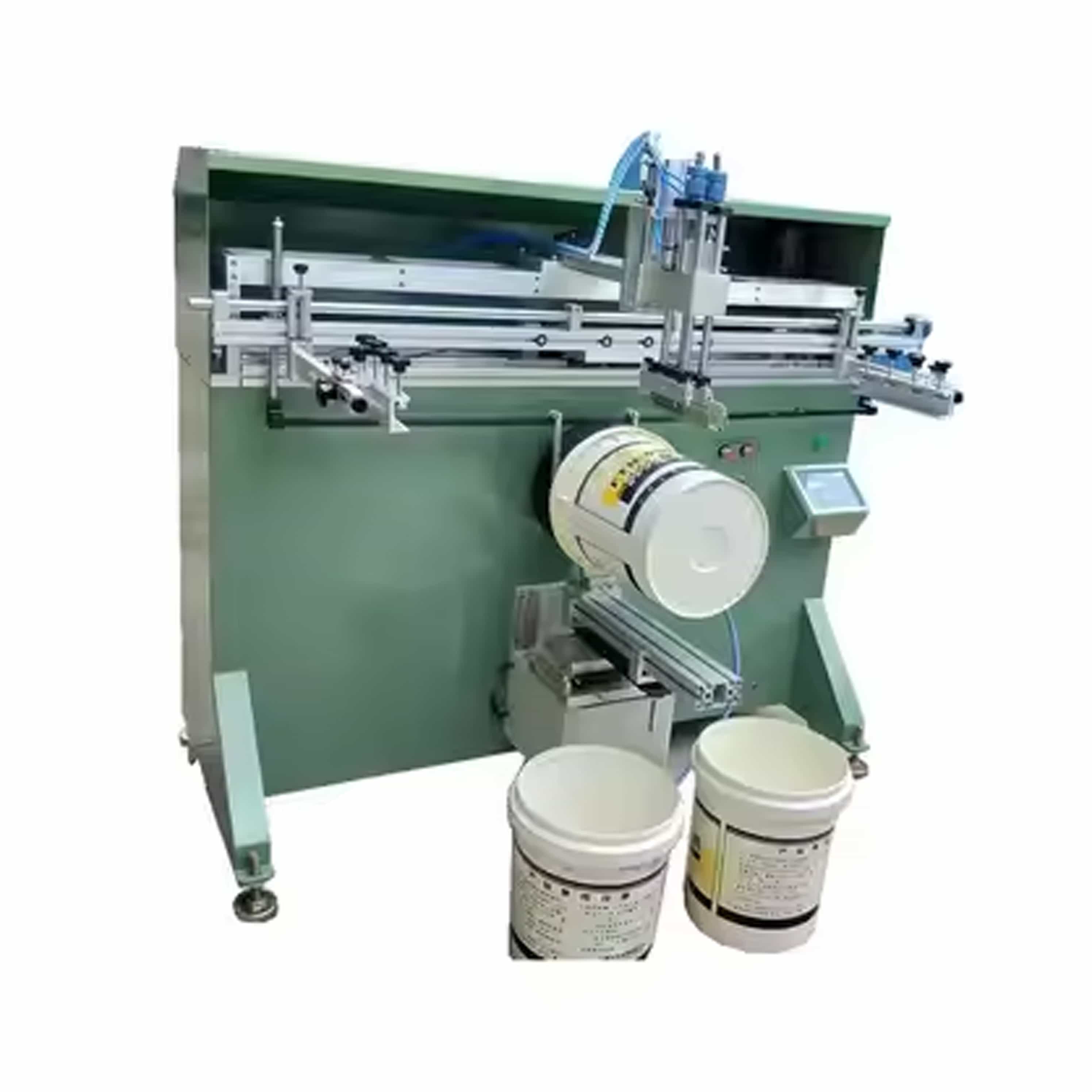

Bucket curved screen printing machine
Product parameters are introduced
1. Printing color: monochrome
2. Printing speed: 600 times per hour
3. Maximum frame: 900*1500mm
4. Maximum printing area diameter 350mm full circle or 700*1200mm
5. Table up and down stroke: 200mm
6. Left and right stroke of the scraper: 1200mm
7. Maximum product diameter 400mm
8. Connection load: 20W
9. Pneumatic supply: 6bar
10. Body dimensions: 980*1460*1680mm
11. Weight: 280kg
