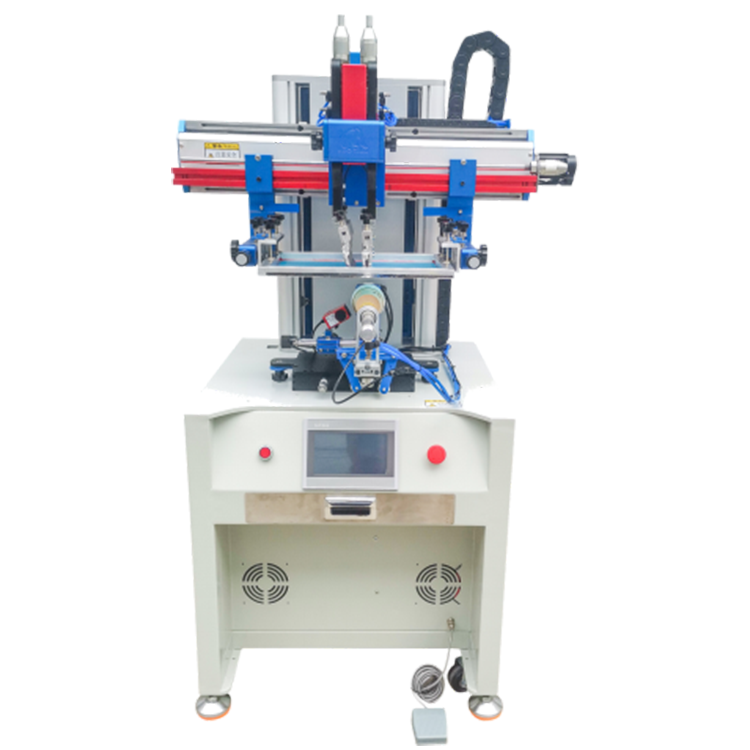

Servo alignment surface screen printing machine

Product parameters are introduced

1, Product name: servo alignment surface screen printing machine

2. Product model: S-400Y

3, printing color: monochrome (can set multi-color)

4. Air pressure requirement: 6 bar

5, control system: PLC+ touch screen

6, power: 1.6KW

7. Power supply: 220V 50/60Hz

8, the maximum printing diameter: Φ10mm-120mm

9, the maximum size of the board: 400*700MM

10, printing speed: 1500/ h

11. Overall size: 800*750*1600MM packing 900*850*1750MM

12. Machine weight: 230kg packing 270KG

13, control system: Mitsubishi PLC+ touch screen

14, up and down, left and right, rotation servo motor
