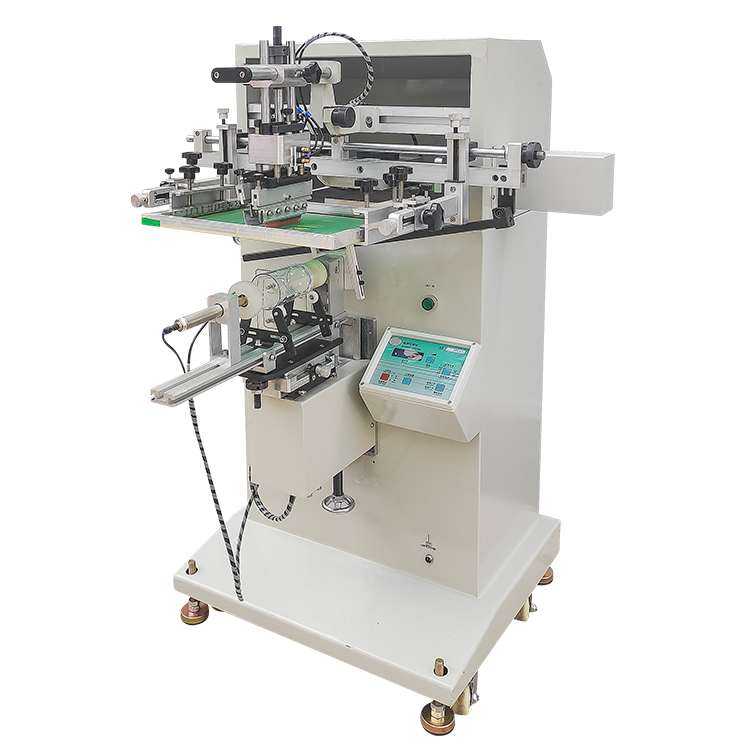

Vertical curved screen printing machine

Product parameters are introduced

1, Product name: surface screen printing machine

2. Product model: S-2A

3, printing color: monochrome

4. Air pressure requirement: 6 bar

5. Control system: microcircuit control

6, power: 50 W

7. Power supply: 220V 50/60Hz

8, the maximum printing diameter: Φ10mm-60mm

9, the maximum size of the board: 300*600MM

10, printing speed: 1500/ h

11. Overall size: 800*800*1300MM packing 900*900*1450MM

12. Machine weight: 75kg packing 115KG

13. Drive: pneumatic
